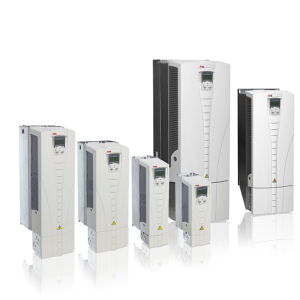

产品介绍
功率范围至160KW、壁挂式安装或法兰安装、防护等级IP21或IP54、选配助手型或基本型控制面板、
多种应用满足、高质量和高可靠性
Highlight 特点
Ø to 160KW (3-phase三相，380 to 480 V)
Ø Perfect match for industrial pumps and fans
Ø 完美匹配风机水泵应用
Ø Advanced control panel providing intuitive operation
Ø 先进控制盘提供直观操作界面
Ø Patent pending swinging choke for superior harmonic reduction
Ø 用于降低谐波的技术：变感式电抗器
Ø Cycle soft start
Ø 循环软起

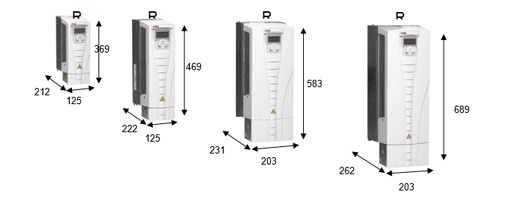

图寸规格
【服务热线】： 0591-87951280
Square Torque | Frame | ||||
Code No. | Type | 平方转矩应用 | Size | ||
产品代号 | 产品型号 | PN（kW ） | I2N（A ） | 规格 | |
电机额定功率 | 额定输出电流 | ||||
3ABD00015741-D | ACS510-01-03A3-4 | 1.1 | 3.3 | R1 | |
3ABD00015742-D | ACS510-01-04A1-4 | 1.5 | 4.1 | ||
3ABD00015743-D | ACS510-01-05A6-4 | 2.2 | 5.6 | ||
3ABD00015744-D | ACS510-01-07A2-4 | 3 | 7.2 | ||
3ABD00015745-D | ACS510-01-09A4-4 | 4 | 9.4 | ||
3ABD00015746-D | ACS510-01-012A-4 | 5.5 | 11.9 | ||
3ABD00015747-D | ACS510-01-017A-4 | 7.5 | 17 | R2 | |
3ABD00015748-D | ACS510-01-025A-4 | 11 | 25 | ||
3ABD00015749-D | ACS510-01-031A-4 | 15 | 31 | R3 | |
3ABD00015750-D | ACS510-01-038A-4 | 18.5 | 38 | ||
3ABD00021615-D | ACS510-01-046A-4 | 22 | 46 | ||
3ABD00015752-D | ACS510-01-060A-4 | 30 | 60 | R4 | |
3ABD00015753-D | ACS510-01-072A-4 | 37 | 72 | ||
3ABD00021616-D | ACS510-01-088A-4 | 45 | 88 | ||
3ABD00019055-D | ACS510-01-125A-4 | 55 | 125 | R5 | |
3ABD00015756-D | ACS510-01-157A-4 | 75 | 157 | R6 | |
3ABD00015757-D | ACS510-01-180A-4 | 90 | 180 | ||
3ABD00015758-D | ACS510-01-195A-4 | 110 | 205 | ||
3ABD00022031-D | ACS510-01-246A-4 | 132 | 245 | ||
3ABD00027039-D | ACS510-01-290A-4 | 160 | 290 | ||
3ABD00015759-D | ACS510-01-03A3-4+B055 | 1.1 | 3.3 | R1 | |
3ABD00015760-D | ACS510-01-04A1-4+B055 | 1.5 | 4.1 | ||
3ABD00015761-D | ACS510-01-05A6-4+B055 | 2.2 | 5.6 | ||
3ABD00015762-D | ACS510-01-07A2-4+B055 | 3 | 7.2 | ||
3ABD00015763-D | ACS510-01-09A4-4+B055 | 4 | 9.4 | ||
3ABD00015764-D | ACS510-01-012A-4+B055 | 5.5 | 11.9 | ||
3ABD00015765-D | ACS510-01-017A-4+B055 | 7.5 | 17 | R2 | |
3ABD00015766-D | ACS510-01-025A-4+B055 | 11 | 25 | ||
3ABD00015767-D | ACS510-01-031A-4+B055 | 15 | 31 | R3 | |
3ABD00015768-D | ACS510-01-038A-4+B055 | 18.5 | 38 | ||
3ABD00021617-D | ACS510-01-046A-4+B055 | 22 | 46 | ||
3ABD00015770-D | ACS510-01-060A-4+B055 | 30 | 60 | R4 | |
3ABD00015771-D | ACS510-01-072A-4+B055 | 37 | 72 | ||
3ABD00021618-D | ACS510-01-088A-4+B055 | 45 | 88 | ||
3ABD00019056-D | ACS510-01-125A-4+B055 | 55 | 125 | R5 | |
3ABD00015774-D | ACS510-01-157A-4+B055 | 75 | 157 | R6 | |
3ABD00015775-D | ACS510-01-180A-4+B055 | 90 | 180 | ||
3ABD00015776-D | ACS510-01-195A-4+B055 | 110 | 205 | ||
3ABD00022032-D | ACS510-01-246A-4+B055 | 132 | 245 | ||
3ABD00027042-D | ACS510-01-290A-4+B055 | 160 | 290 | ||
